YH-SF Telescopic Seating Retractable Platforms Bleachers

Vinyl PVC Textile Leather Coated Folding Seat | YH-SF

  • Seat and backrest: High-quality wood lining, polyurethane material cold foam molding, covered with textile fabric or artificial leather.
  • Support: Made by galvanized steel or aluminum pressure casting, making sure of the support strength.
  • Beam: Made by galvanized steel roll-forming or aluminum extrusion molding, powder coating treatment after rust-proof
  • Folding mechanism: Hidden slow rebound spring system, noise-free.
  • Options: Armrest, cupholders, writing board.
  • Installation: Beam floor/riser mounted.
  • National Appearance Patent

Chair:

  • Part Number: YH-SF
  • Material:  Fabric/Leather upholstery,  wooden plate inner
  • Material Standards: Anti-weathering, Anti-Fire, Anti-UV,
  • High and low temperature.
  • Type: Tip-up
  • Fold  Mechanism: Spring

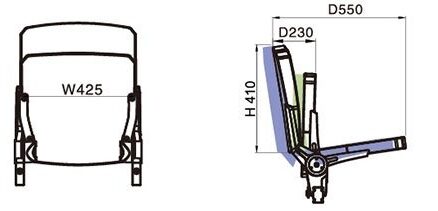

Size:  Width:430±5mm; Depth:220±5mm(Close), 555±5mm(Open);  C/C: ≥480mm.

Height:

  • 804±5mm(Riser mounting)
  • 819±5mm(Floor mounting)

Bracket:

  • Material: Steel /Alloy Aluminum
  • Surface treatment: Powder coating/ Hot Galvanized.
  • Material Standards:  Impact resistant, adhesion, Salt spray resistance, Heat resistance

Armrest: Optional

Options:

  • Seat Number
  • Cup Holder
  • Add Plate

Installation:

  • Beam mounting
  • independently

Design For:

  • Stadium Seating
  • Metal Grandstand
  • Retractable seating

Application:

  • Schools
  • Sports Venues
  • Universities
  • Stadiums
  • Concert halls

Strength and durability

  • BS EN 12727:2000

Fire Resistance and Ignitability

  • BS 5852:2006
  • DIN4102-1
